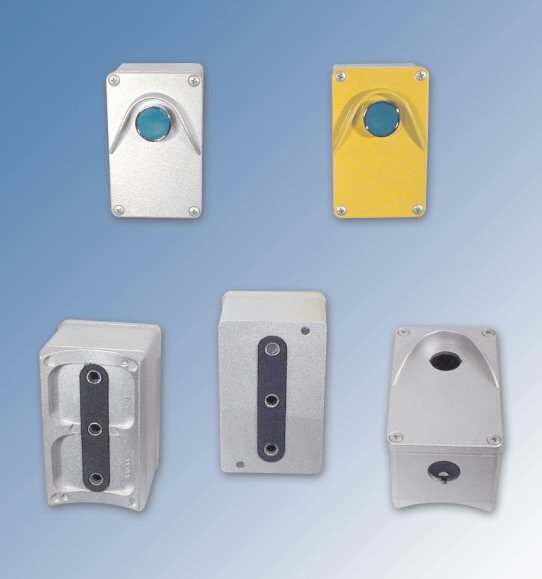

Enclosures for controls, placed one on the front and a second one on the lower side.
Aluminium die-cast (for alloy see general technical information), then sand-blasted or varnished

These enclosures are particularly suitable to be installed vertically on octagonal or round poles (Ø 102 and 200 mm). They are fastened to the pole by through screws placed inside the enclosure and protected by a gasket laying between the enclosure and the supporting surface. Some items are equipped with a preassembled push button and a GREEN actuator at the same level of the ring nut, which is usually open contact (10 A - 250 V~). The push button placed on the cover is protected by a safety band. Internal cover grounding screw. Stainless steel cover screws (see fittings for unscrewable screws). Neoprene mouse gaskets (others available on request). Protection degree IP 65 (complete enclosures). Temperature of use - 20° +100°C.
